IXS™ Series-1000-12-PWM-R
12VDC / 1000VA-800W / PWM - Solar Charger

IXS™ Series-3000-24-PWM-R
24VDC / 3000VA-2400W / PWM - Solar Charger

IXS™ Series-5000-48-PWM-R
48VDC / 5000VA-4000W / PWM - Solar Charger

IXS™ Series-5000-48-MPPT-R
48VDC / 5000VA-4000W / MPPT - Solar Charger

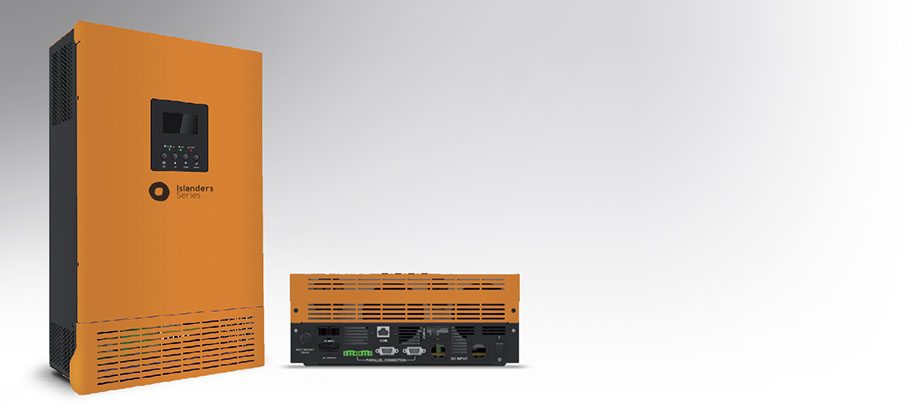

IXS™ Series

Smart True Sinewave Inverter
Charger With Integrated Solar Charger

Product Overview

These new ISLANDER-IXS Smart True Sinewave Inverter and Battery Charger are the ideal solution for off-grid and backup power applications. Convert battery power to household AC power and recharge your batteries

Easy to use and install, these pure sinewave inverter + chargers are microprocessor controller for high efficiency, have selectable charging current, solar Charger Controller (PWM or MPPT) included.

They are a smart Battery Charger and have configurable AC /SOLAR input priority via LCD and PC (via communication port). With Relay for an automatic start of a generator. They are very ligh tweight with anodized aluminum casing. Low power consumption for energy saving. With full protections, overload and short circuitprotection. Over-temperature, DC reverse polarity and short circuit protection. Cold Start Function. Low/High battery alarm and protection. Sinewave output to run motor loads and sensitive electronics. Ideal inverter for running microwave ovens, kitchen appliances and consumer electronics.

Features and Benefits

• Smart Microprocessor controller for high efficiency. With selectable charging current
• Included Solar Charger Controller (PWM or MPPT)
• Configurable AC / SOLAR input priority via LCD and PC (via communication port)
• With Relay for an automatic start of a generator  (DCCP) (optional)
• Isolation design between input and output for safety guarantee. Lightweight, stainless steel and anodized aluminum casing
• Low power consumption for energy saving
• Overload and short circuit protection. Over-temperature, DC reverse polarity and short circuit protection
• Cold Start Function.
• Low/High battery alarm and protection
• Parallel operation with up to 4 units for IXS/5000 models to increase power up to 20kVA in single-phase mode and 15kVAin three-phase mode (PKIXS5000)(Optional).
