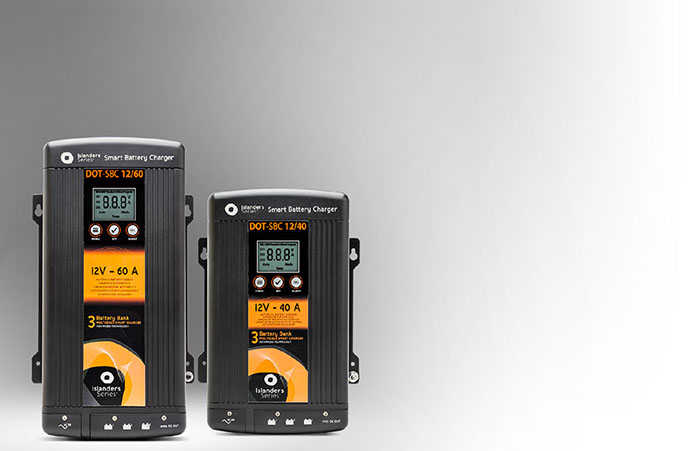

DOT-SBC™ Series

DOT-SBC™ Series

Universal Smart Battery Charger for 3 Battery Banks
GEL, AGM, Flooded and Lithium Batteries





Product Overview

  • High-efficiency Smart Battery Charger
  • Multiple outputs to charge 3 independent battery banks (isolated charging design)
  • Fully Automatic Multi-Stage [Bulk, Absorption, Float, Maintenance and Equalization (Manual)] Charging Methods
  • Adjustable for GEL, AGM, Flooded and Lithium batteries
  • Provides Power Supply Mode
  • Auto ranging input from 90-260VAC, 50/60Hz
  • Conectable to any AC generator
  • Easily configurable
  • Ideal for Off-Grid and Off-Shore applications, UPS and Back-up, telecom and CATV, traffic, agricultural, marine and caravan, cathodic protection, professional installations,…
  • Fully protected against short-circuit, over-temperature, reverse battery connection, over-charge, etc.
  • LCD display and 3 setting buttons
  • Easy wiring. Ready to use. AC cable included
  • Optional Remote Panel (RPSBC)
  • Optional Battery Temperature Sensor (BTSSBC)
  • Extendable. Parallel operation with Optional Remote Panel. High power systems can be achieved (only for SBC1260 and SBC2430)

Features and Benefits

• Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.

• Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.

• Programmable: Battery bank one can be programmed with a different charge algorithm over banks two and three.

• Current Control: User adjustable current.

• Smart Charging: The ISLANDER-SBC battery charger will regulate its output based on the loads connected to your battery banks.

• LED Display: Easy to use “set and select” menu along with scrolling charger status.

• Silent Mode: Disables the cooling fan for total silent operationat night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.

• Temperature Sensor: Battery temperature sensor included with 3 meter cable

Download Datasheet (pdf)
