DIN Rail Adapter iSCC-DIN™
of ISLANDERS (OPTIONAL)

Remote Digital Display iSCC-DX™
of ISLANDERS (OPTIONAL)

iSCC-XN™ Series 20
20A/20A – 12/24V - 240W@12V & 480W@24V

iSCC-XN™ Series 40
40A/40A – 12/24V – 480W@12V & 960W@24V

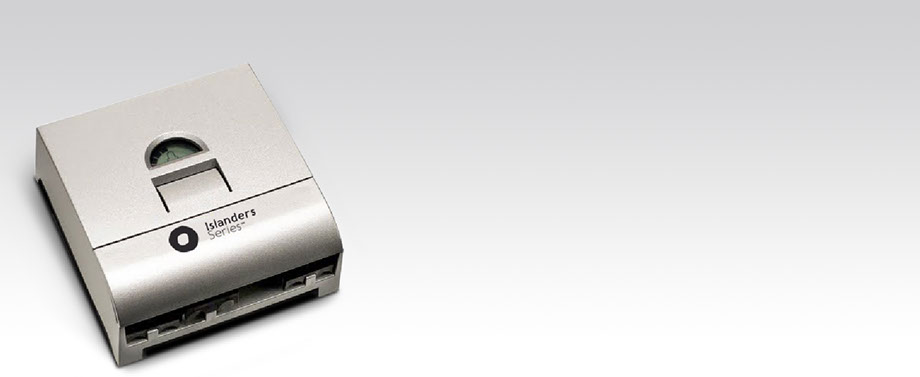

iSCC-XN™ Series

Programmable Solar Charge and Discharge Controller
12/24V Automatic Detection

Product Overview

This solar charge and discharge controller protects the battery from being overcharged by the solar panels and from being over-discharged by the DC loads.

The iSCC-XN™ Series of ISLANDERS are sophisticated solar charge and discharge controllers for small solar systems where, charge and discharge control are required. They are equipped with a microprocessor and provide high efficiency displaying the normal operation, alarm messages, etc. in a simple way with acoustic signals and display.

The solar charge and discharge controllers iSCC-XN™ of ISLANDERS are programmable and provided with negative grounding. In addition to a perfect PWM regulation with integrated temperature compensation, the controllers provide fully electronic safety functions.

Their multi-stage (4-stage) PWM charging method (Float – Main – Boost – Equalization) is adjustable for different types of batteries: GEL/AGM or Flooded (Factory setting).

These solar charge and discharge controllers also come with three deep discharge functions: Low Voltage Warning (LVW), Low Voltage Disconnect (LVD) adjustable by State of Charge (SOC) or battery voltage (up to 5 different modes), and automatic Low Voltage Reconnect (LVR).

The iSCC-XN™ Series of ISLANDERS are equipped with multifunctional LCD in order to display clearly the charge status, the discharge status or the state of charge of the battery with a bar graph and the loads status. Furthermore, these controllers are one of few controllers in their class that have an acoustic alarm before low voltage disconnection.

Thanks to their DC load output, there is no need of any inverter to power DC loads such as ultra-efficient low-voltage 12VDC or 24VDC LED NATURE™ Series lamps of ISLANDERS. Consequently, savings and efficiency of the solar system are increased considerably.

These solar charge and discharge controllers are equipped with a wide range of programmable functions, such as LVD function, Nightlight function and Lock-out function. Moreover, their programming menu can configure iSCC-XN™ Series: battery type, LVD, Nightlight function (type, evening setting and morning setting), Day/Night threshold, Buzzer on/off, Serial Interface Functions and Individual/Factory settings.

Features and Benefits

• Built-in one-year data logger for better system analysis.
• Battery state-of-charge indication by means of bar graph.
• Load disconnect warning by acoustic signal.
• Four-stage (Float, main, boost and equalization) PWM charging method for lead-acid batteries (GEL/AGM and Flooded).
• 12/24V Automatic Detection.
• Temperature compensation.
• SOC- and voltage-controlled LVD with five different selectable algorithms.
• Fully electronically protected.
• Large terminals: up to 16mm².
• Negative grounding.
• DIN Rail Adapter iSCC-DIN™ of ISLANDERS available (optional).
• Remote Digital Display iSCC-DX™ of ISLANDERS available (optional).
