Remote Digital Display iSCC-DL™
of islanders (OPTIONAL)

DIN Rail Adapter iSCC-DIN™
of ISLANDERS (OPTIONAL)

iSCC-L™ Series L05 12/24V - 5A – 60W @ 12V / 120W @ 24V

iSCC-L™ Series L15 12/24V - 15A – 180W @ 12V / 360W @ 24V

iSCC-L™ Series L20 12/24V - 20A – 240W @ 12V / 480W @ 24V

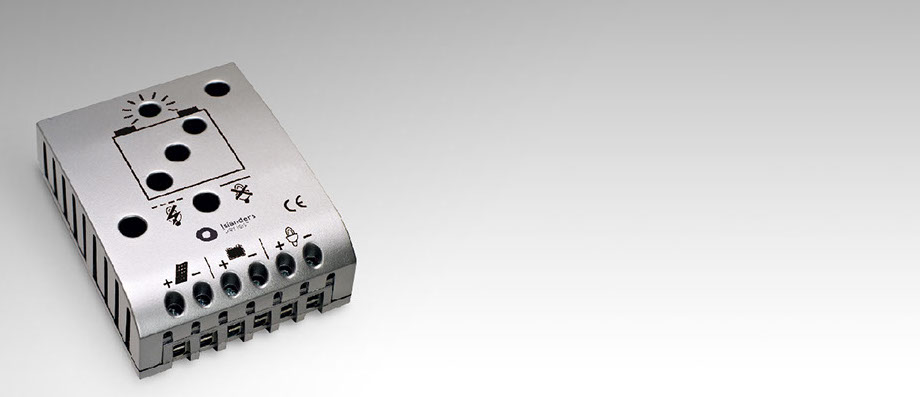

iSCC-L™ Series

Solar Charge and Discharge Controller
12/24V Automatic Detection

Product Overview

This solar charge and discharge controller protects the battery from being overcharged by the solar panels and from being over-discharged by the DC loads. The iSCC-L Series of ISLANDERS are sophisticated solar charge and discharge controllers for small solar systems where, charge and discharge control are required. They are equipped with a microprocessor and provide high efficiency displaying the normal operation, alarm messages, etc. in a simple way with acoustic signals and display.

The solar charge and discharge controllers iSCC-L of ISLANDERS are programmable and provided with positive grounding. In addition to a perfect PWM regulation with integrated temperature compensation, the controllers provide fully electronic safety functions. Their multi-stage (3-stage) PWM charging method (Boost – Float – Equalization) is adjustable for different types of batteries: GEL/AGM or Flooded (Factory setting).

These solar charge and discharge controllers also come with three deep discharge functions: Low Voltage Warning (LVW), Low Voltage Disconnect (LVD) adjustable by State of Charge (SOC) or battery voltage, and automatic Low Voltage Reconnect (LVR).

The iSCC-L Series of ISLANDERS are equipped with 5 LEDs in order to display clearly the charging status, the state of charge of the battery and the loads status. Furthermore, these controllers are one of few controllers in their class that have an acoustic alarm before low voltage disconnection.

Thanks to their DC load output, there is no need of any inverter to power DC loads such as ultra-efficient low-voltage 12VDC or 24VDC LED NATURE Series lamps of ISLANDERS. Consequently, savings and efficiency of the solar system are increased considerably.

Features and Benefits

• Battery state-of-charge indication by means of 3 LEDs.
• Load disconnect prewarning by acoustic signal.
• Three-stage (Boost, float and equalization) PWM charging method for lead-acid batteries
  (GEL/AGM and Flooded).
• Automatic 12/24V detection.
• Temperature compensation.
• SOC- and voltage-controlled LVD.
• Fully electronically protected.
• Large terminals: up to 16mm².
• Positive grounding.
• Remote Digital Display iSCC-DL of ISLANDERS available (optional).
• DIN Rail Adapter iSCC-DIN of ISLANDERS available (optional).
