Features and Benefits

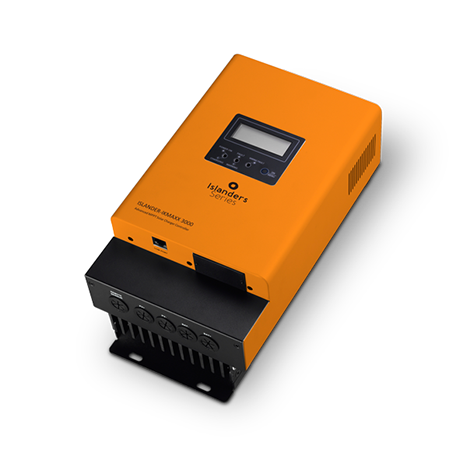

• Advanced Multi-stage Solar Charge Controller
• With integrated Intelligent Maximum Power Point Tracking (MPPT) technology

• Ideal for Off-Grid Photovoltaic (PV) battery charging systems up to 3200W
• Automatic battery bank voltage detection 12V / 24V / 48V
• Three-stage charging (Bulk – Absorption – Float. Equalization by software, Optional)
• Battery type: AGM/GEL, Flooded and Customized Maximum charging current up to 60A
• Wide PV voltage operation range. Maximum 145VDC
• Easy-to-use and Fully Programmable
• Built-in LCD display shows Real-time data and Status information
• Three Indicator LEDs for solar, charging and load status
• External Battery Voltage Sensor Included
• Excellent thermal design and natural air cooling
• Full Protection: Transient surge, Overcharge, Over-temperature and Reverse Polarity Protection for solar panel and battery
• Remote Temperature Sensor Included (BTS-IKMAXX™)
• Parallel Operation Possible (Optional with PK-IKMAXX™ kit)
• Ideal for powerful Off-Grid and Off-Shore Solar PV applications: Rural Electrification, Telecom and CATV, Traffic, Agricultural, Marine and Caravan, Cathodic Protection, Professional
  Installations,…
