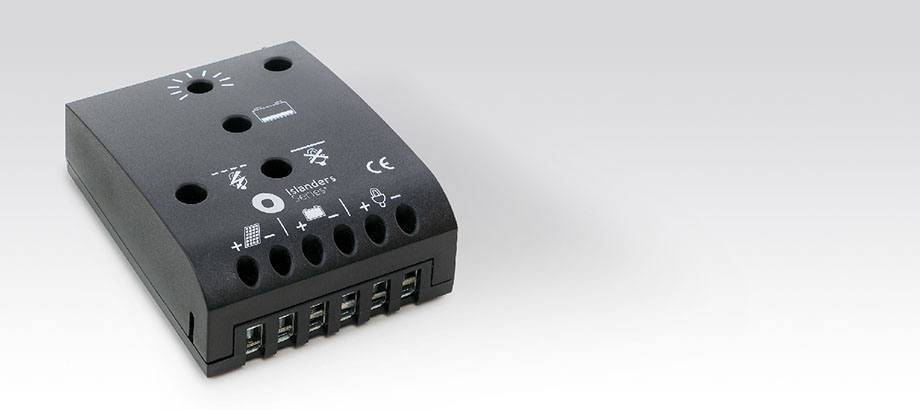

iSCC-A™ Series

Solar Charge Controller

Product Overview

The new version of the solar charge controller iSCC-A™ Series is especially designed for small solar systems requiring low-battery disconnect. The iSCC-A™ Series is fully electronically protected.

It is indispensable to control and protect the battery, avoid over-charging and protect the battery against deep discharge.

The iSCC-A™ Series works on positive grounding. In addition to perfect PWM regulation and integrated temperature compensation, the controller provides electronically regulated charging mode (Boost and Floating).

The main difference of iSCC-A™ Series is that it prevents from over-temperature caused by a short-circuit in a panel.

It has three LEDs to indicate: SOC, LVD, over-load and short-circuit. Leisure and rural electrification systems are the typical applications for this product. It is a perfect solution for cost-sensitive systems

Features and Benefits

• Electronically regulated charging mode: boost and float charge
• Deep discharge protection
• PWM series regulation
• Integrated temperature compensation
• Fully electronically protected against:
  • Panel surge voltage
  • Reverse polarity (panel or battery)
  • Overload and short circuit at load
• Three LED indications: SOC, LVD, over-load and short-circuit
• Positive grounding
• Remote display iSCC-DL™ available (not included)
